Overview
SmithCo’s SX1 Single Axle side dump trailer is primarily used in situations when maneuverability is an issue, or as a second trailer in a doubles operation.
The SX1 has many length options, with the SX1-2317 and SX1-2620 being the most popular selections. When used in a doubles operation, the converter dolly can be attached with either a fifth wheel or roller turntable connection.
Features
- 20’ to 30’ foot frame lengths
- Stockpile or windrow
- Watertight; no leaks
- Low load height
- Dumps toward either side
- AR450 Steel Tub, One Piece Floor
- 80/100 KSI Steel Frames
- Self-Aligning, Spherical Bearing Hinges
- External Column Tub Supports
- No Center Tub Divider
- Shot Blast Paint Prep
- Polyurethane Paint
Specifications
SX1 Tub Capacities
| Waterfull | Heaped | |
|---|---|---|
| 17’ tub | 11.5 cu yd | 15.5 cu yd |
| 25’ tub | 16.75 cu yd | 22.5 cu yd |

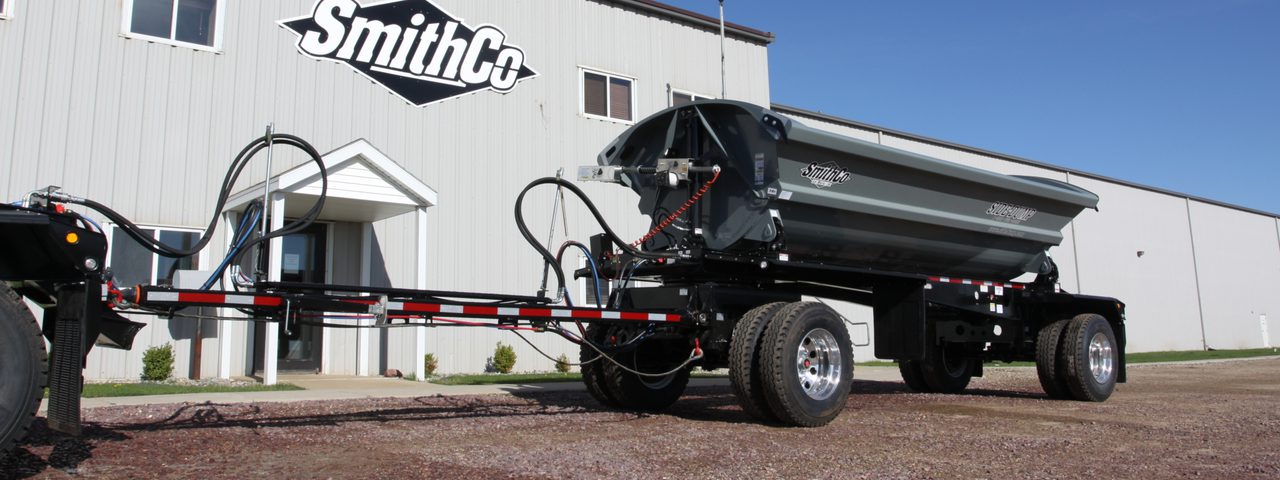

Model SX1-2317 SmithCo Side Dump Trailer with CD-1 Dolly
Specs shown are for 22’2” frame length; other configurations available.
| Frame Length | 22’ 2” |
| Tub Length | 17' |
| Width | 8’ 6” |
| Height | 8' 3" at Tub side, 9' 6" at Center |
| Tub Construction | 1/4" Thick, AR450 Steel (or equivalent) 3/16" Thick, AR450 Steel (or equivalent) is optional |
| Frame Construction | 80/100 KSI, Fabricated Steel I-beam |
| Bumper | Under-Ride Type |
| Cylinders | 3500 PSI, 5" bore |
| Dolly | Single Axle |
| Connection | Turntable |
| Tongue | 3" Premier Swivel Drawbar Eye. Premier Tongue Hinge Assembly (poly) |
| Hinges | Self-Aligning, Spherical Bearing Type (greaseable) |
| Suspension | Air Ride Suspension Standard; Spring Ride Available |
| Axles | (2) 25,000# capacity |
| Hubs | 10 Hole, Hub Piloted |
| ABS | 2S1M Anti-Lock Brake System |
| Drums | Outboard Mount, Cast Steel |
| Wheels | Steel Disc, 8.25 x 22.5 (8) |
| Tires | 11R 22.5 G Radial Tires (8) |
| Brakes | 16 1/2" x 7" |
| Fenders | Front & Rear, 1/4" Synthetic, 7 Degree Slope |
| Lights | 12 Volt ICC w/ Sealed Harness |
| Mud Flap | (2) Polyline Anti-Spray Splash Guard w/SmithCo name |
| Paint | Polyurethane, any combination of gray, white or black Special colors available upon request |
| Min. Tractor Hydraulic Reqs. | 25-30 GPM 2,600-2,800 PSI 10 Gallon Reservoir |
