Overview
Tackle Your Toughest Conditions
Increase profitability with a faster load-dump cycle, greater payloads, lower maintenance costs and the ability to stockpile or windrow for more strategic dumping.
Industries
Agriculture
High volume, low load height
Watertight; no leaks for wet loads
All-terrain flotation tires
Construction
Haul dirt, rock, riprap and other abrasive materials
Configuration flexibility for tandem or trains

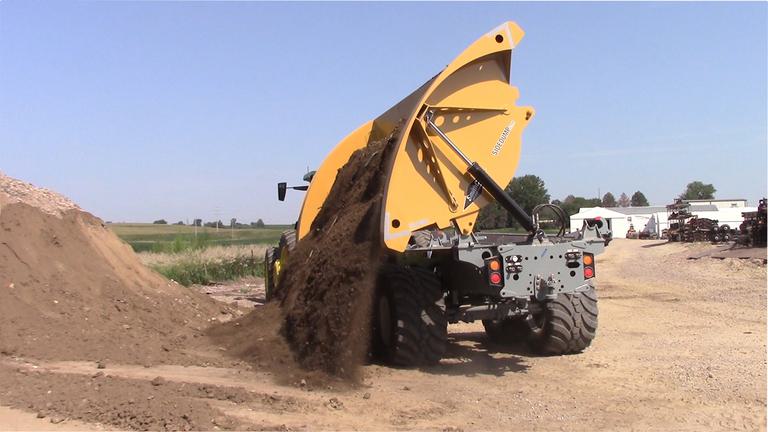

Dump to either side on uneven ground

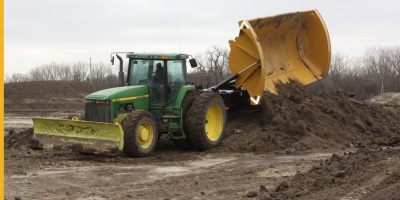

Off-road Site Prep
Haul more dirt at a lower cost
Lower maintenance costs than traditional equipment
No special license required

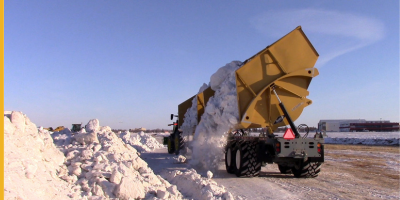

Snow Removal
Flop-out liner prevents snow from sticking
Even distribution for a stable dump
No backing up, better sightlines
Watch The BRUTE in action:
Features
Re-engineered To Be Our Toughest Trailer Yet

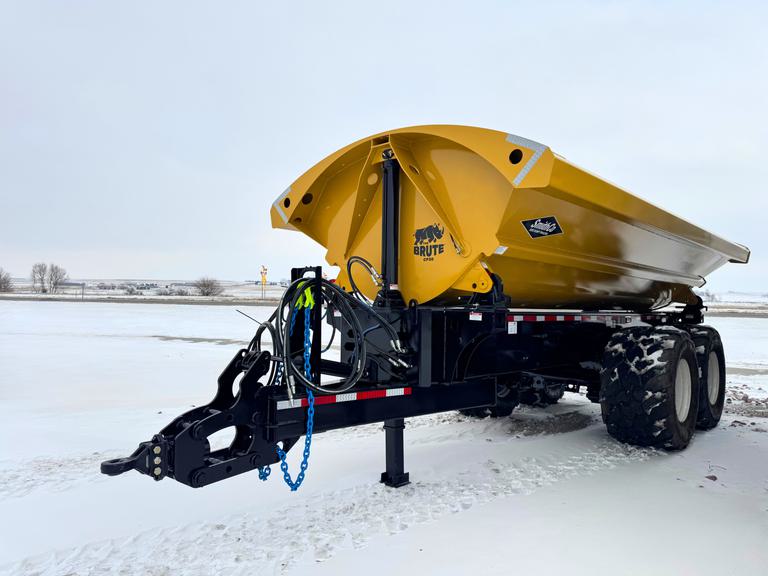

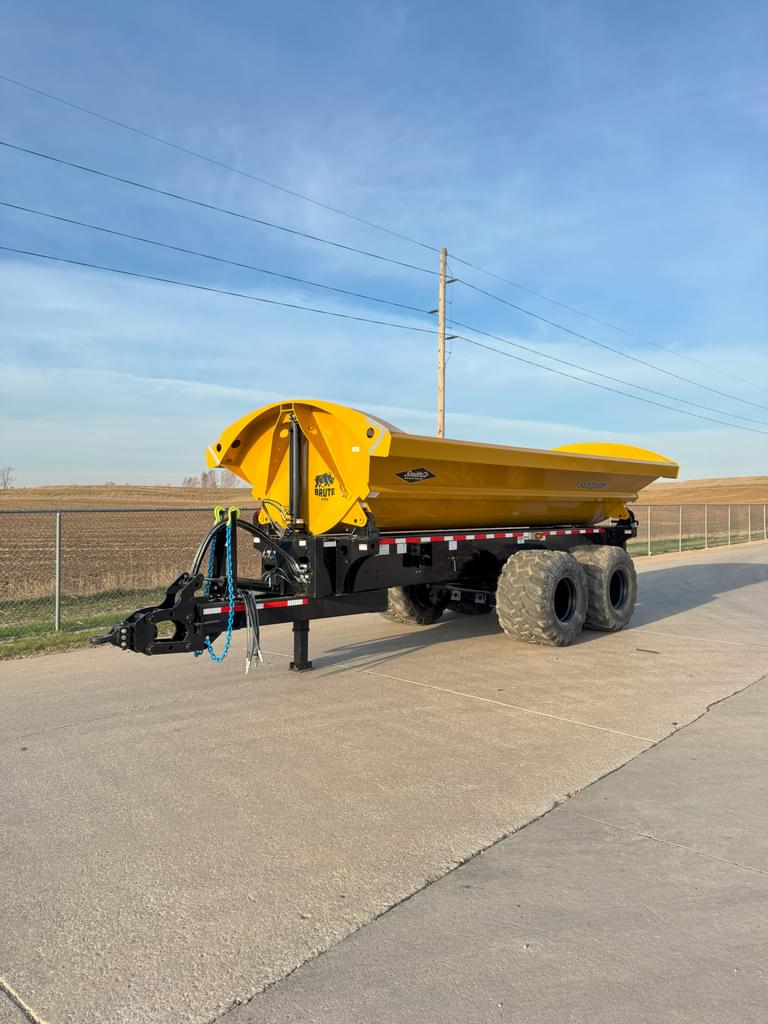

The BRUTE CP30 is a more robust version of the original CP30 construction pup, offering a more efficient way to transport dirt, manure, snow and other materials.
New Features

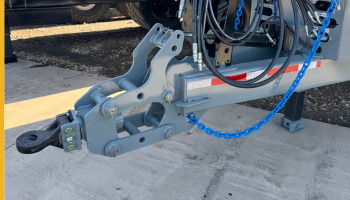

Hydraulic Front Hitch
2.5x stronger shaft with linear shock absorber for a better ride

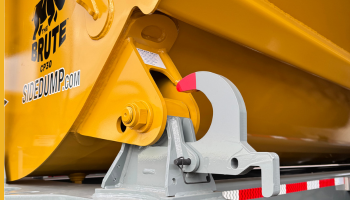

Heavy-duty Hinges
Increase longevity with new heavy-duty self-aligning tub hinges

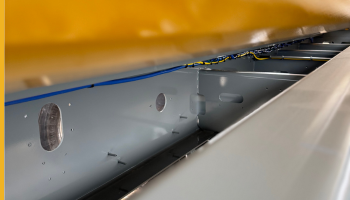

Re-engineered Frame
New G-channel frame improves weight-to-strength rating

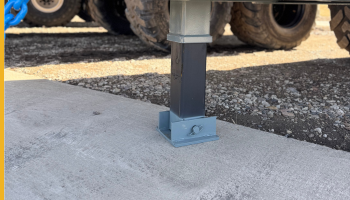

Hydraulic Landing Leg
Easily adjust to different tractor heights

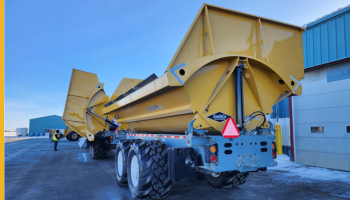

Extension Option
Double your load capacity with super high-volume extensions

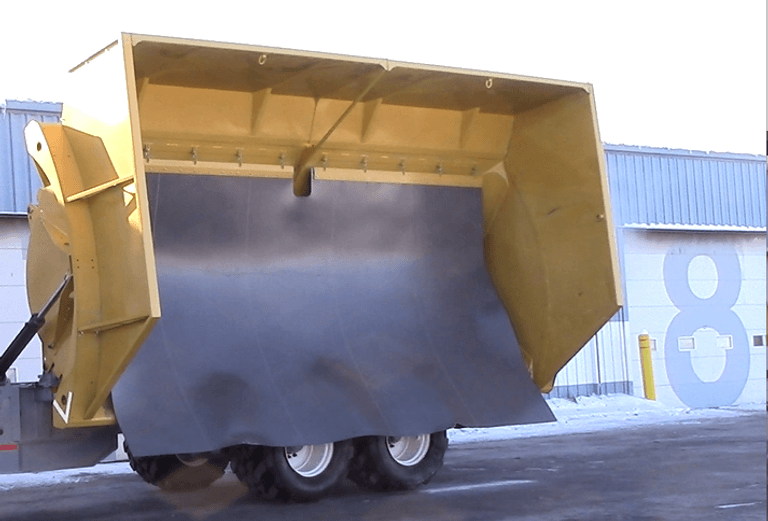

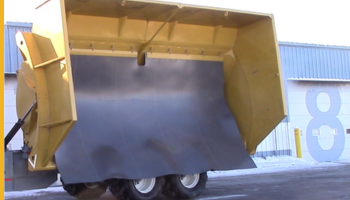

Liner Option
Prevent materials from sticking with a bolt-on flop-out liner

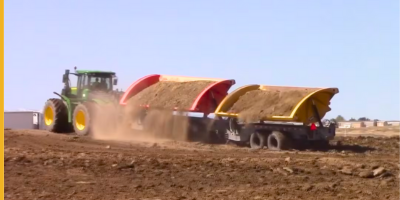

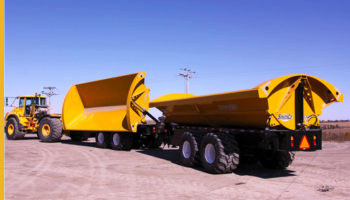

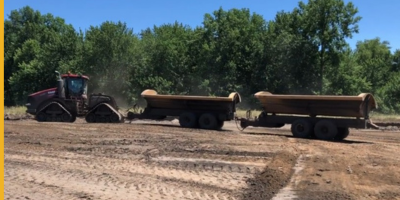

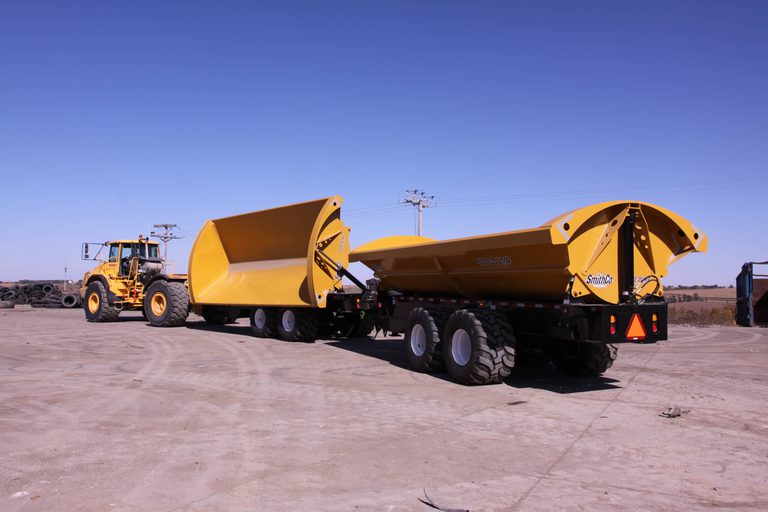

Train & Tandem
Run single 30-ton units or hook tandem/triple combinations to move more material
Specifications
CP30 Tub Capacities
| Waterfull | Heaped | |
|---|---|---|
| 30-ton Tub | 15.3 cu yd | 22 cu yd |
| Extended (optional bolt-on) | 49 cu yd |
CP30 SmithCo Side Dump Trailer
20-ton model also available.
| Hitch | Standard 2” drawbar pin, scraper-type adapters available |
| Tongue | Hydraulically adjustable to flip between lead & pup |
| Landing Gear | Hydraulic, high clearance |
| Pushblock | Standard, rear hitch available |
| Safety Chains | 1/2" Safety chains with safety hooks |
| Tub Construction | 1/4" Thick, AR 450 (or equivalent) round floor style tub |
| Frame Construction | 80/100 KSI, G-Frame, eliminates need for counterweights |
| Cylinders | 3500 PSI, 5" Bore |
| Hinges | Self-aligning, spherical bearing type (greaseable) |
| Suspension | 90K Walking beam |
| Axles | 30K Capacity |
| Hubs | 10 Hole, hub piloted |
| Drums | Outboard mount, cast steel |
| Brakes | None, hydraulic or air optional |
| Wheels | Tubeless, steel disc |
| Tires | Heavy-duty flotation tires |
| Lights | 12 Volt LED with sealed harness |
| Paint | Polyurethane, any combination of gray, white or black Special colors available upon request |
| Min. Tractor Hydraulic Reqs. | 25-30 GPM, 2,600-2,800 PSI, 10 gallon reservoir |
| Net Payload Rating | 30 Tons |

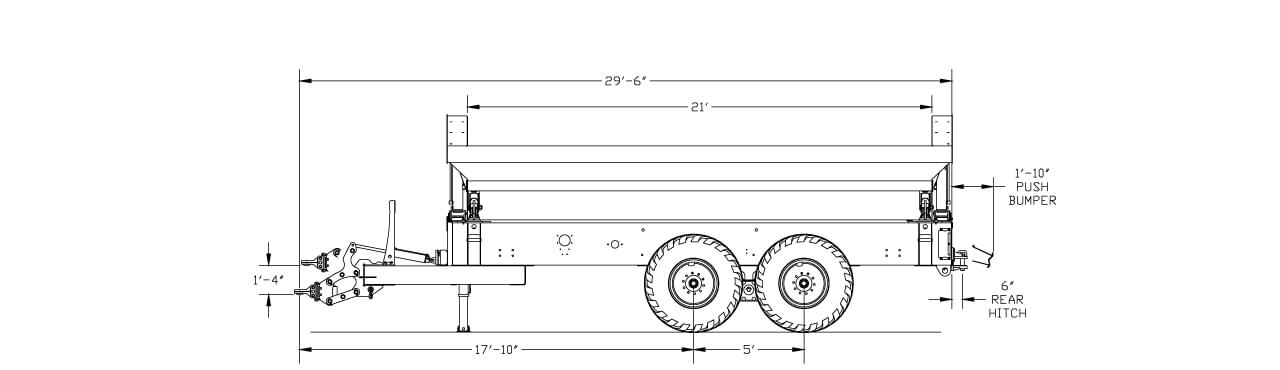

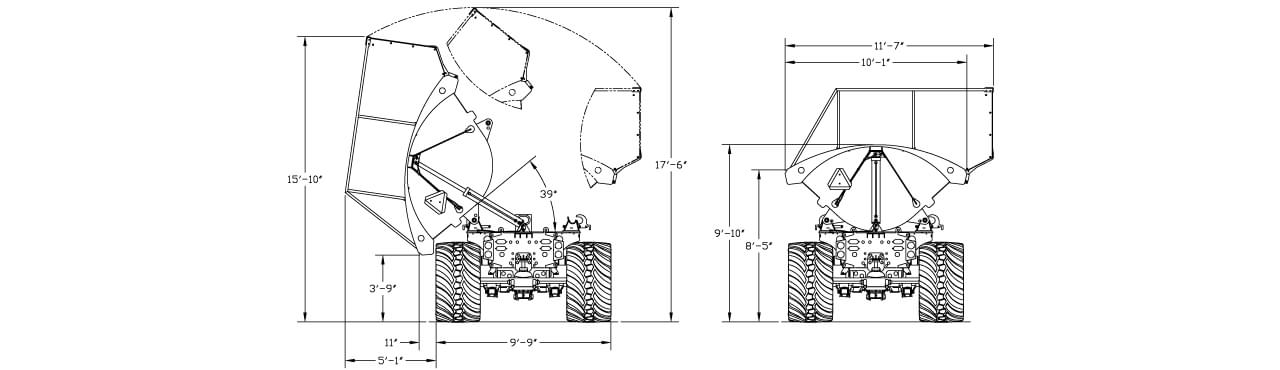

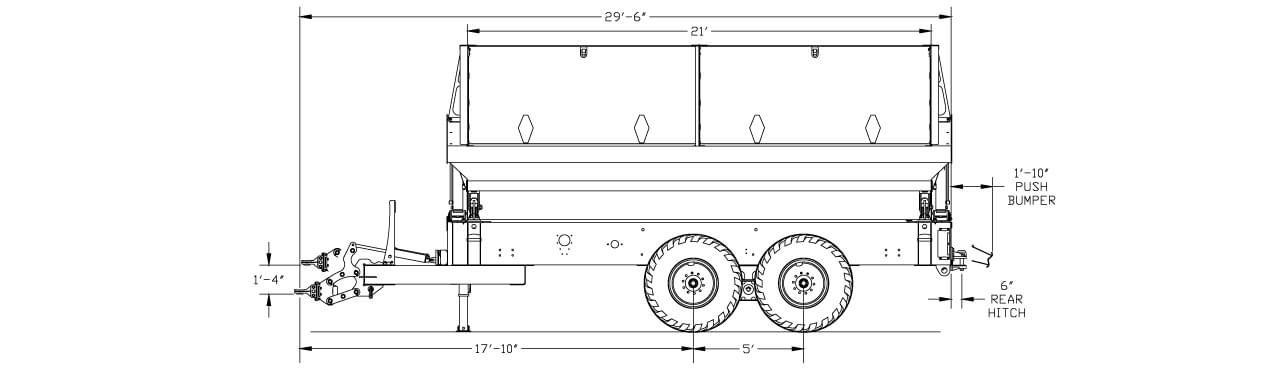

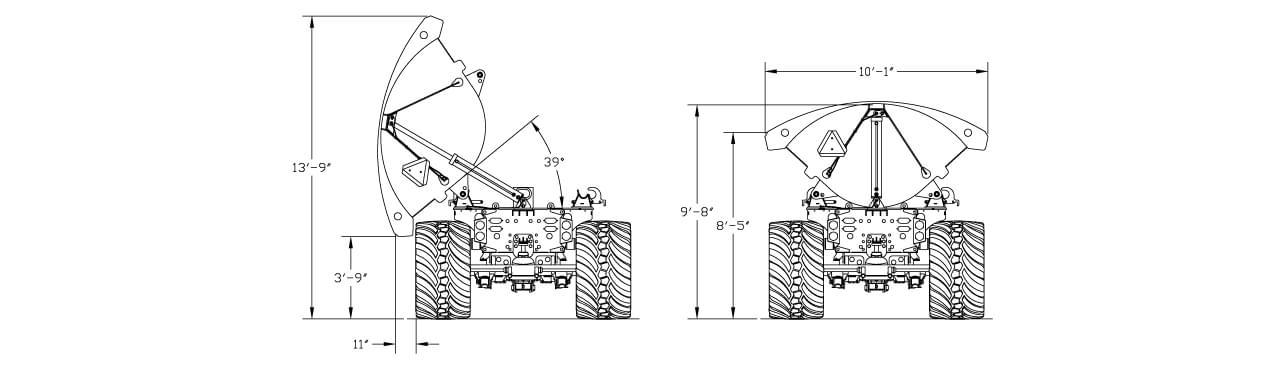

Layout Options
