Overview

Tackle Your Toughest Conditions

Increase profitability with a faster load-dump cycle, greater payloads, lower maintenance costs and the ability to stockpile or windrow for more strategic dumping.

Industries

Agriculture

High volume, low load height
Watertight; no leaks for wet loads
All-terrain flotation tires

Construction

Haul dirt, rock, riprap and other abrasive materials
Configuration flexibility for tandem or trains
Dump to either side on uneven ground

Off-road Site Prep

Haul more dirt at a lower cost
Lower maintenance costs than traditional equipment
No special license required

Snow Removal

Flop-out liner prevents snow from sticking
Even distribution for a stable dump
No backing up, better sightlines

Watch The BRUTE in action:

Features

Re-engineered To Be Our Toughest Trailer Yet

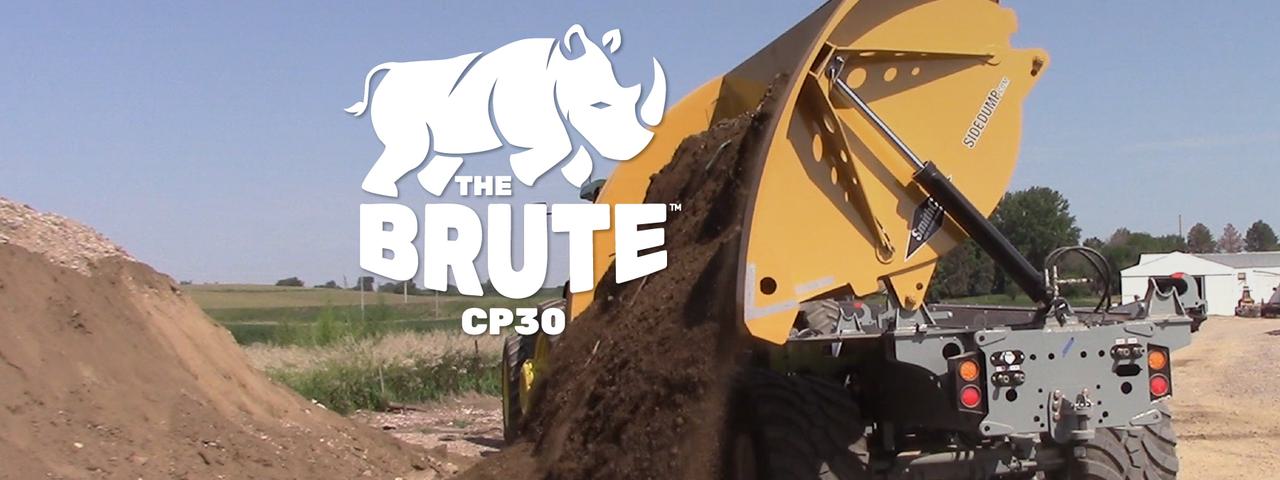

The BRUTE CP30 is a more robust version of the original CP30 construction pup, offering a more efficient way to transport dirt, manure, snow and other materials. Some of the enhanced features include:

Hydraulic Front Hitch
2.5x stronger shaft with linear shock absorber for a better ride

Heavy-duty Hinges
Increase longevity with new heavy-duty self-aligning tub hinges

Re-engineered Frame
New G-channel frame improves weight-to-strength rating

Hydraulic Landing Leg
Easily adjust to different tractor heights

Extension Option
Double your load capacity with super high-volume extensions

Liner Option
Prevent materials from sticking with a bolt-on flop-out liner

Train & Tandem
Run single 30-ton units or hook tandem/triple combinations to move more material

Specifications

CP30 Tub Capacities

	Waterfull	Heaped
30-ton Tubyd	15.3 cu	22 cu yd
Extended (optional bolt-on)		49 cu yd

CP30 SmithCo Side Dump Trailer

20-ton model also available.

Hitch	Standard 2” drawbar pin, scraper-type adapters available
Tongue	Hydraulically adjustable to flip between lead & pup
Landing Gear	Hydraulic, high clearance
Pushblock	Standard, rear hitch available
Safety Chains	1/2" Safety chains with safety hooks
Tub Construction	1/4" Thick, AR 450 (or equivalent) round floor style tub
Frame Construction	80/100 KSI, G-Frame, eliminates need for counterweights
Cylinders	3500 PSI, 5" Bore
Hinges	Self-aligning, spherical bearing type (greaseable)
Suspension	90K Walking beam
Axles	30K Capacity
Hubs	10 Hole, hub piloted
Drums	Outboard mount, cast steel
Brakes	None, hydraulic or air optional
Wheels	Tubeless, steel disc
Tires	Heavy-duty flotation tires
Lights	12 Volt LED with sealed harness
Paint	Polyurethane, any combination of gray, white or black Special colors available upon request
Min. Tractor Hydraulic Reqs.	25-30 GPM, 2,600-2,800 PSI, 10 gallon reservoir
Net Payload Rating	30 Tons
