Overview

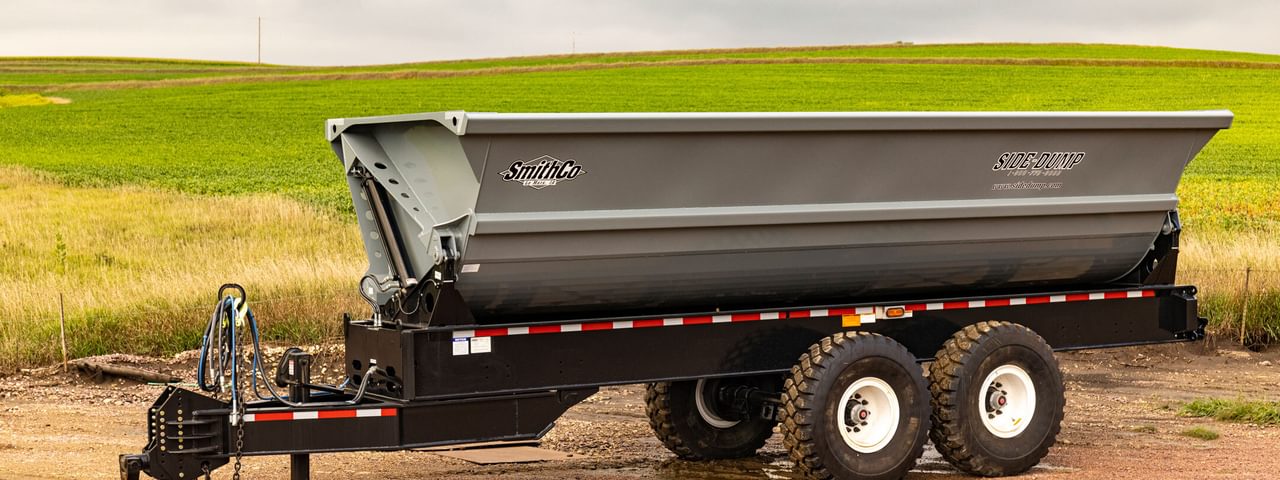

SmithCo’s Super High Volume Ag Pup was designed for the agricultural market. It can be easily pulled with an ag tractor and features flotation or construction grade tires.

These units are available in a 20-ton capacity with a variety of construction grade or flotation type tires. A 2″ drawbar pin type hitch is standard, but scraper type hitches are also available. Whether you want to top load materials your scraper can’t handle or you want to haul ag products to the field the Ag Series is the perfect choice.

Features

  • Stockpile or Windrow
  • Watertight; no leaks
  • Designed for the agricultural market
    • Animal waste
    • Dirt & sand
    • Demolition
    • Seasonal grain wagon
    • Silage
    • Unlimited applications
  • AR450 Steel Tubs
  • 80/100 KSI T-1 Steel Frames
  • 25K Axles
  • Single Point Suspension
  • Construction grade or flotation type tires
  • Low Loading Height

Specifications

CPSHV20 Tub Capacities

WaterfullHeaped
23' Tub

25.5 cu yd

29 cu yd

CPSHV20 SmithCo Side Dump Trailer

Frame Length

32' 10"

Tub Length

23'

Width

8’ 6”

Towing Eye

Rotating Bull Pull or Ag Hitch, 2" Drawbar Pin

Pushblock

Standard, 24" Extensions Available

Safety Chains

1/2" Safety Chains w/ Safety Hooks

Loading Height

10' 2" (122")

Tub Construction

1/8" G80 Sides 3/16” AR450 Floor,

Round Floor Style Tubs

Frame Construction

80/100 KSI, Fabricated Steel I-Beam

Cylinders 3500 PSI, 5" bore
Hinges Self-Aligning, Spherical Bearing Type (greaseable)
Landing Gear

High Clearance

Suspension

Hutch H-900 60,000 lb Single Point

Axles

25,000# Capacity

Hubs 10 Hole, Hub Piloted
Drums Outboard Mount, Cast Steel
Brakes

None, Hydraulic or Air Optional

Wheels

Tubeless, Steel Disc

Tires

16:00 R 20 Tires (std)

600/55-22.5 Low Ground Pressure (optional)

Lights 12 Volt LED ICC w/ Sealed Harness
Paint

Polyurethane, any combination of gray, white or black

Special colors available upon request

Min. Tractor Hydraulic Reqs.

25-30 GPM

2,600-2,800 PSI

10 Gallon Reservoir

Net Payload Rating 20 tons

Min. Tractor HP Reqs.

200hp
