Overview
SmithCo’s Ag Pup was designed for the agricultural market. It can be easily pulled with an ag tractor and features flotation or construction grade tires.
These units are available in a 20-ton capacity with a variety of construction grade or flotation type tires. A 2″ drawbar pin type hitch is standard, but scraper type hitches are also available. Whether you want to top load materials your scraper can’t handle or you want to haul ag products to the field the Ag Series is the perfect choice.
Features
- Stockpile or Windrow
- Watertight; no leaks
-
Designed for the agricultural market
- Animal waste
- Dirt & sand
- Demolition
- Seasonal grain wagon
- Silage
- Unlimited applications
- AR450 Steel Tubs
- 80/100 KSI T-1 Steel Frames
- 25K Axles
- Single Point Suspension
- Construction grade or flotation type tires
- Low Loading Height
Specifications
CP20 Tub Capacities
| Waterfull | Heaped | |
|---|---|---|
| 24' Tub | 16 cu yd | 22 cu yd |

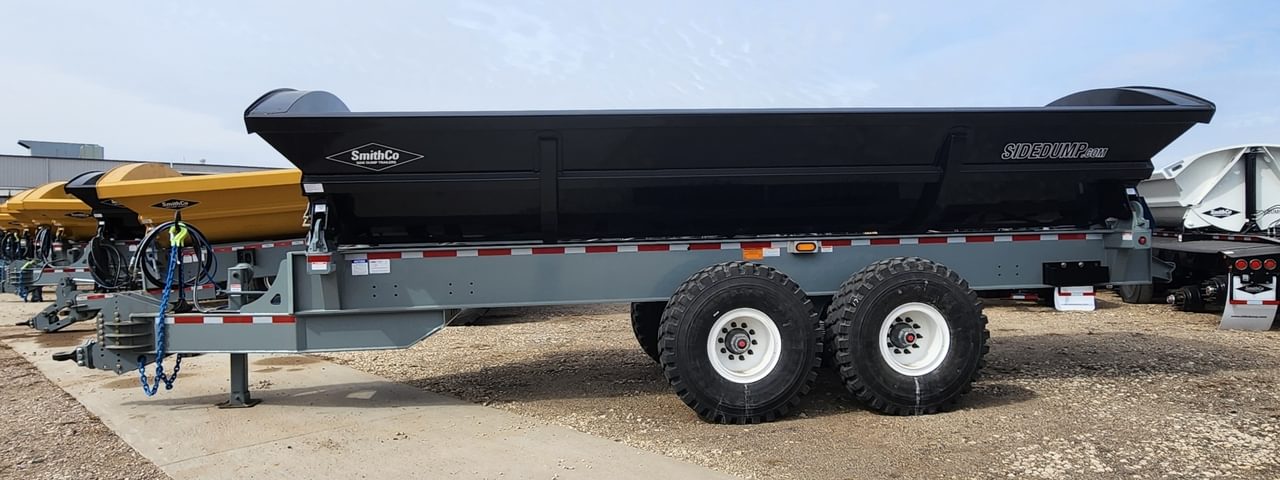

CP20 SmithCo Side Dump Trailer
| Frame Length | 32' 11" |
| Tub Length | 24' |
| Width | 8’ 6” |
Towing Eye |
Rotating Bull Pull or Ag Hitch, 2" Drawbar Pin |
Pushblock |
Standard, 24" Extensions Available |
| Safety Chains | 1/2" Safety Chains w/ Safety Hooks |
Loading Height |
8' 5" (101") |
| Tub Construction | 1/4" Thick AR450 Steel (or equivalent) Round Floor Style Tubs |
| Frame Construction | 80/100 KSI, Fabricated Steel I-Beam |
| Cylinders | 3500 PSI, 5" bore |
| Hinges | Self-Aligning, Spherical Bearing Type (greaseable) |
| Landing Gear | High Clearance |
| Suspension | Hutch H-900 60,000 lb Single Point |
| Axles | 25,000# Capacity |
| Hubs | 10 Hole, Hub Piloted |
| Drums | Outboard Mount, Cast Steel |
| Brakes | None, Hydraulic or Air Optional |
| Wheels | Tubeless, Steel Disc |
| Tires | 16:00 R 20 Tires (std) 600/55-22.5 Low Ground Pressure (optional) |
| Lights | 12 Volt LED ICC w/ Sealed Harness |
| Paint | Polyurethane, any combination of gray, white or black Special colors available upon request |
| Min. Tractor Hydraulic Reqs. | 25-30 GPM 2,600-2,800 PSI 10 Gallon Reservoir |
| Net Payload Rating | 20 tons |
Min. Tractor HP Reqs. |
200hp |
